Boost Operational Throughput with Automated Racking Systems
In today’s competitive environment, maximizing every cubic foot of space is critical. That’s why pallet shuttle systems have become the ultimate high-density storage solution—meaning they allow you to store the maximum amount of product in the smallest possible footprint. Raymond Storage Concepts (RSC) delivers the expertise facilities need to dramatically increase their storage capacity while boosting operational speed.

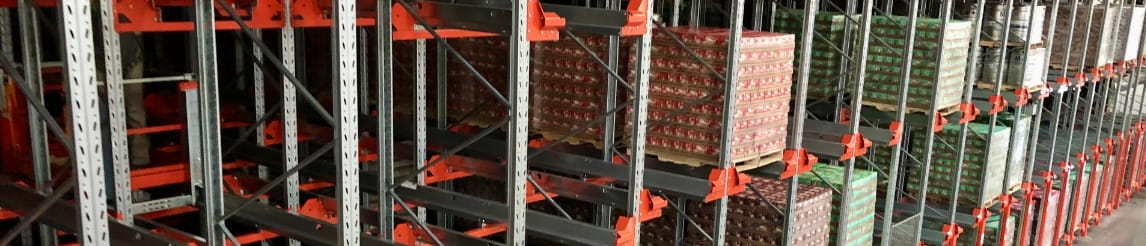

These automated racking systems use an electric shuttle cart that travels within specialized deep lanes, effortlessly moving pallets in and out of storage. This simple innovation eliminates the need for forklifts to drive deep into the rack, allowing you to maximize warehouse density.
Beyond increasing your storage density, pallet shuttles have some additional benefits to keep in mind that increase your efficiency and lower your long-term costs.
-
Reduce Manual Labor & Operational Costs
Since the shuttle cart handles the deep-lane movement, your forklift operators can complete cycles faster, significantly reducing manual labor and overall operational costs. -
Extend the Lifespan of Your Fleet
By eliminating the need for forklifts to drive inside the racking systems, the shuttle drastically reduces equipment wear and tear and minimizes costly structural damage. -
Easy to Scale with Demand
The modular design makes it easy to purchase additional shuttle carts or add more rack lanes incrementally, allowing you to easily scale your high-density storage solution as your business grows.
-
The Mechanics: How the Shuttle Works
The pallet shuttle begins with its core component: the battery-powered shuttle cart. This small, durable carriage runs on rails placed inside the deep-lane racking structure.
The process is simple: an operator places a pallet onto the cart at the front of the lane and uses a compact remote control to send the cart into the system. The cart automatically transports the pallet and places it in the next open storage position. When retrieving goods, the operator signals the cart to bring the desired pallet back to the aisle. This key feature allows your team to manage storage and retrieval tasks faster, as the forklift only needs to access the end of the lane, never the deep interior.
Ideal Industries & Applications
Determine if this powerful tool is right for you by considering your needs for storage density versus selectivity.
Manufacturing & Production
Companies often need to store a high volume of raw materials or finished goods—like beverages, bulk chemicals or packaged food—that have a high production volume but a limited number of different products (SKUs).
High-Volume Buffer Storage
If your products need to be staged before shipping, a shuttle provides optimal buffer stock storage, maximizing space near shipping docks or staging areas.
Cold Storage & Freezers
Since the shuttle cart maximizes warehouse density and reduces the time human operators spend in the freezer, it delivers massive energy and labor savings for temperature-controlled facilities.
LIFO Inventory
For non-date-sensitive products (like construction materials), LIFO (Last In, First Out) inventory uses access from only one aisle, allowing you to build extremely deep lanes for maximum space savings.
Can you relate? Talk to one of our specialists to about the automated storage needs.
Choosing Your Shuttle: Understanding Movement, Control & Hardware
While all shuttle solutions deliver high-density storage, they are classified by how they move, how automated they are and the hardware they use. Understanding these three classifications helps determine the right fit for your unique warehouse challenges.
By Movement: 2-Way vs 4-Way
This distinction defines how the shuttle moves within the system and the complexity of the rack design:
-
2-Way Pallet Shuttle
These standard systems only move forward and backward along the rails/tracks inside a storage lane. This is ideal for deep-lane storage where full selectivity isn’t a priority. -
4-Way Pallet Shuttle
A 4-way pallet system is more advanced than its standard counterpart—able to move back and forth and side to side (up and down the aisle). The cart can access multiple storage lanes, allowing for greater flexibility and selectivity.
By Control: Semi-Automated vs Automated
This determines the level of automation in the overall storage and retrieval workflow:
-
Automated Systems
A fully automated shuttle system handles the delivery and pickup of the pallet from the aisle. No human operator is required to handle the shuttle cart, making it a fully integrated process. -
Semi-Automated Systems
This is the most common type of pallet shuttle system. An operator uses a forklift to deliver the pallet to the front of the rack, then uses a remote control to instruct the cart to handle the storage or retrieval task.
By Hardware: Shuttle-Based vs Bot-Based
While often used interchangeably, the hardware dramatically impacts system flexibility, speed and overall infrastructure. The choice comes down to prioritizing either maximum throughput or rapid scalability.
-

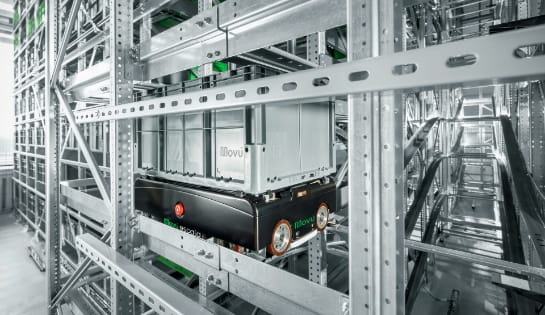

Bot-Based System
These highly flexible systems handle both horizontal and vertical movement, making them ideal for operations that prioritize easy scalability and adaptability, though they generally offer lower overall throughput. -
Shuttle-Based Systems
Shuttle-based requires a more complex, permanent infrastructure (fixed rails and dedicated lifts). They offer superior throughput and speed for large-scale operations because the shuttle cart focuses only on fixed movement.
Optimizing Inventory Flow: FIFO vs LIFO
A key advantage of pallet shuttle systems is their flexibility in supporting your established inventory rotation method. Your choice of flow—FIFO or LIFO—depends on your product. This decision is crucial if your inventory is perishable or if the value of your stock changes the longer it sits in the warehouse.
-

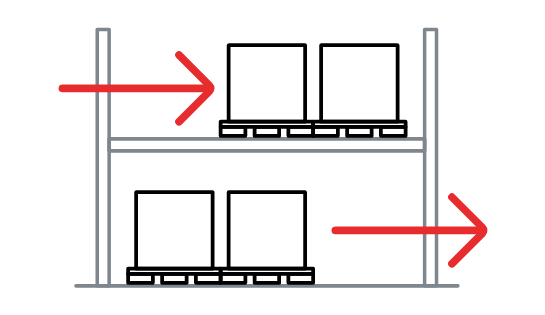

FIFO (First In, First Out) Operation
The FIFO method ensures that the oldest product stored is the first one retrieved. This is critical for managing inventory with expiration dates or strict date codes, such as food and beverage, pharmaceuticals or certain chemicals.
To achieve true FIFO, the shuttle system is designed with two access aisles: one for loading and one for retrieval. Your operator loads the pallet from the front, and the shuttle cart pushes it to the back. When retrieving, an operator pulls the pallet from the opposite aisle, guaranteeing the correct stock rotation is maintained. -

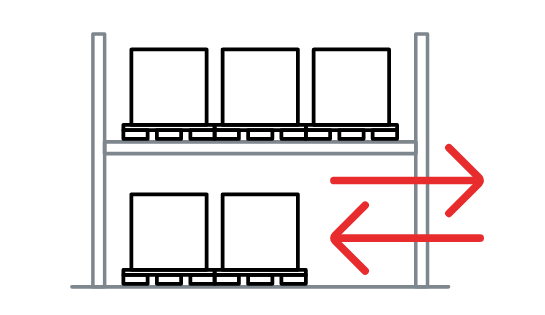

LIFO (Last In, First Out) Operation
The LIFO method means the last product stored in a lane is the first one retrieved. This method is ideal for items with no expiration dates, such as construction materials, industrial components or general buffer stock.
LIFO is the ultimate space-saving layout because it requires only one access aisle for both loading and retrieval. This eliminates an entire row of aisles from your warehouse design, allowing you to maximize the number of deep-lane storage positions and achieve maximum warehouse density.
Your Partner in Automation: Custom Design & Implementation
Ready to implement a pallet shuttle solution? Our RSC Engineered Solutions team is here to guide you through your project—partnering with you to turn the initial concept into a fully optimized system that delivers real operational change upon final deployment.
Our comprehensive approach covers every detail:
Our comprehensive approach covers every detail:
-
Consulting & Design
We start by getting to know your current state and goals. Then, we design a custom shuttle system tailored to those operational and storage goals. -
Implementation & Integration
Once the design is finalized, our project managers coordinate the installation—from ordering the materials and scheduling the installers to ensuring seamless integration with existing equipment and your warehouse management system (WMS) technology. -
Quality & Safety Assurance
We guarantee all installations meet RMI (Rack Manufacturers Institute) compliance and manage all necessary permitting, followed by thorough system testing and operator training.
Want to know more? Explore our 4-phased full approach and offered solutions.
Improve Your Storage Density with Industry-Leading Brands
At RSC, we partner with many trusted brands to deliver the right pallet shuttle solution for your facility. Below are some of the industry-leading manufacturers we work with:
-
Maintenance, Repair & Parts: Complete Lifecycle Services

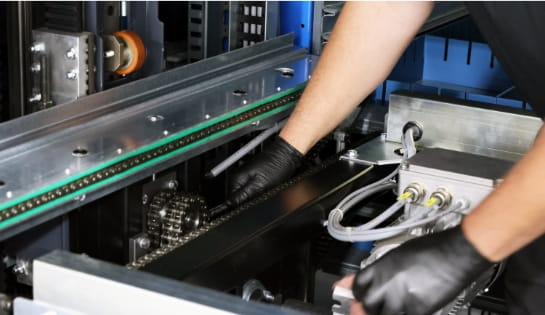

Investing in a pallet shuttle system is a long-term strategy. Our Lifecycle Services guarantee reliable performance for years—starting with regular preventative maintenance and detailed inspections to maximize inventory throughput and prevent downtime. For repairs, our certified technicians are ready to dispatch 24/7 for fast resolution.
